16194/20 - SBS/10 ND65 NP40 B77(H360 6

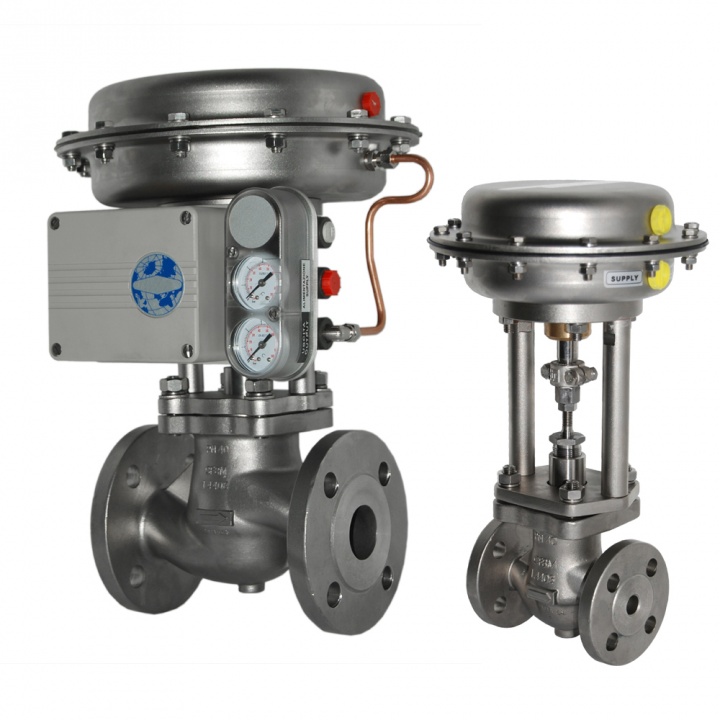

VALVOLE DI REGOLAZIONE SBS/10 CF8M CON SERVOCOMANDO IN 304 2 VIE
VALVOLE DI REGOLAZIONE SBS/10 CF8M CON SERVOCOMANDO IN 304 2 VIE

NEED MORE INFORMATION? Our staff are at your disposal!

Call now
015 980641 or send us an email to
info@italvalvole.com

BODY SIDE SPARE KIT: 15684
STROKE/ROTATION OF VALVE [ MM/°]: 20
ACTUATOR TYPE: B77
KV: 74.8
MAX D.P. [BAR]: 10
MIN. SUPPLY PRESSURE [BAR]: 0.42
MAX ALLOWABLE TEMPERATURE [°C]: 200
MIN ALLOWABLE PRESSURE [BAR]: 0
MAX. ALLOWABLE PRESSURE [BAR]: 40
SEAT DIAMETER: 63
LOW PRESSURE SUPPLY [BAR]: 0,420
2014/34/UE (ATEX) DIRECTIVE CLASSIFICATION: GR II CAT 2 G D
2014/68/UE DIRECTIVE CLASSIFICATION (PED): CAT I
COVER (DISK) MATERIAL FOLLOWING ASTM STANDARD: S31600
COVER (DISK) MATERIAL FOLLOWING EN STANDARD: [1.4401]
BODY MATERIAL FOLLOWING ASTM STANDARD: CF8M
BODY MATERIAL FOLLOWING EN STANDARD: [1.4408]
SEAT SEAL: PEEK
STEM THIGHT: PTFE+PTFE LOAD GRAPHITE PACKING GLAND
SE/DE: SIMPLE EFFECT
SERVOCONTROL TYPE: T.360 [1.4301]
NUMBER OF VALVE WAYS: 2 WAYS
OBTURATOR CHARACTERISTIC: LINEAR
NORMALLY CLOSE/OPEN: NORMALLY OPEN
AIR SUPPLY CONNECTION: 1/8" GAS
VALVE END CONNECTIONS: UNI NP 40 FLANGED
ND: 65
GROUPS ARTICLES: CF8M 2
UPPER PRESSURE SUPPLY [BAR]: 1,260
