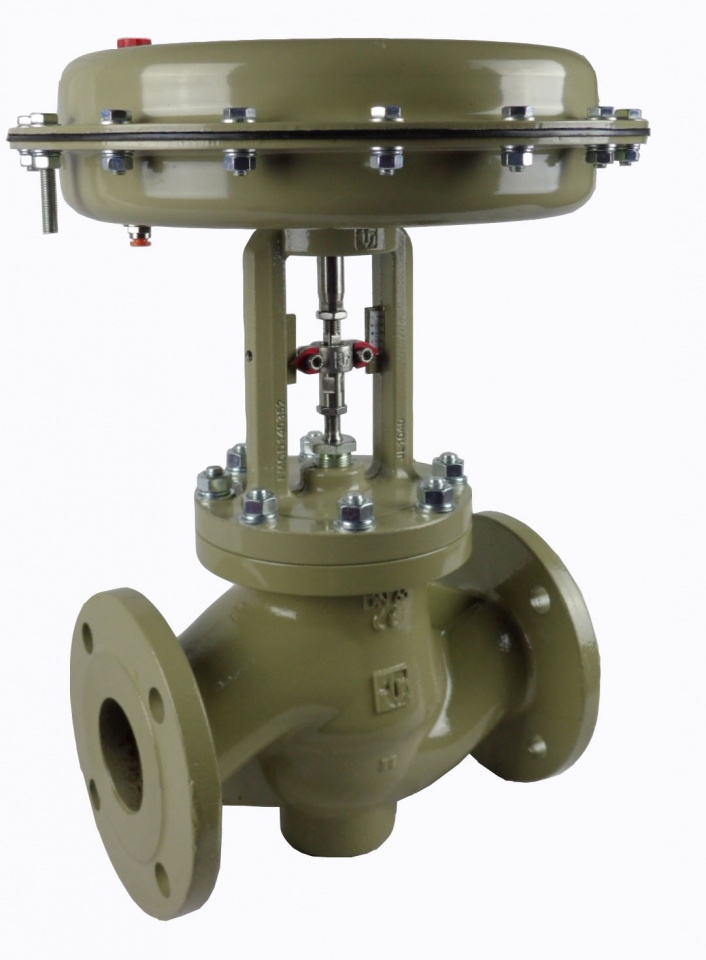

15393/16 - SBS/16 ND65 NP16 B72 (H360 6


VALVOLE DI REGOLAZIONE SBS/10 GHISA SFEROIDALE 500 2 VIE
VALVOLE DI REGOLAZIONE SBS/10 GHISA SFEROIDALE 500 2 VIE

NEED MORE INFORMATION? Our staff are at your disposal!

Call now
015 980641 or send us an email to
info@italvalvole.com

BODY SIDE SPARE KIT: 16664
AIR SIDE SPARE KIT: 16667
STROKE/ROTATION OF VALVE [ MM/°]: 20
ACTUATOR TYPE: B72
MAX D.P. [BAR]: 16
KV: 51.2
MIN. SUPPLY PRESSURE [BAR]: 0.42
MAX ALLOWABLE TEMPERATURE [°C]: 200
MIN ALLOWABLE PRESSURE [BAR]: 0
MAX. ALLOWABLE PRESSURE [BAR]: 16
DATASHEET CODE IN ITALIAN (PDF): 00000
SEAT DIAMETER: 48
UPPER PRESSURE SUPPLY [BAR]: 1,260
LOW PRESSURE SUPPLY [BAR]: 0,420
2014/34/UE (ATEX) DIRECTIVE CLASSIFICATION: NULL
2014/68/UE DIRECTIVE CLASSIFICATION (PED): CAT I
COVER (DISK) MATERIAL FOLLOWING ASTM STANDARD: S30400
COVER (DISK) MATERIAL FOLLOWING EN STANDARD: [1.4301]
BODY MATERIAL FOLLOWING EN STANDARD: [GJS
SEAT SEAL: STELLITED
STEM THIGHT: PTFE+PTFE LOAD GRAPHITE PACKING GLAND
SE/DE: SIMPLE EFFECT
SERVOCONTROL TYPE: T.360
NUMBER OF VALVE WAYS: 2 WAYS
OBTURATOR CHARACTERISTIC: LINEAR
NORMALLY CLOSE/OPEN: NORMALLY CLOSE
AIR SUPPLY CONNECTION: 1/4" GAS
VALVE END CONNECTIONS: UNI NP 16 FLANGED
ND: 65
GROUPS ARTICLES: 500 SPHER. C.I. 2
