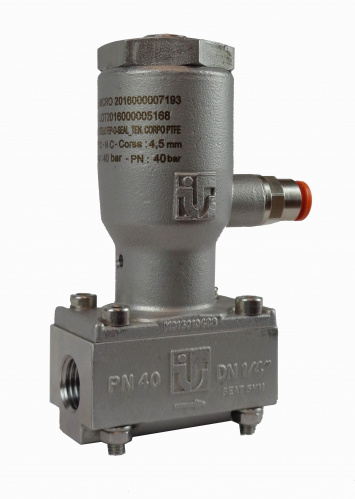

14817 - IMF DN008 H032 CF8M SW PTFE 2WNO
NEED MORE INFORMATION?
Our staff is at your disposal!
Call now
015 980641
or send us an email to
info@italvalvole.com
| DN: | 8 |
| SEAT DIAMETER: | 8 |
| CONNECTIONS: | SOCKET WELDING |
| MAX. ALLOWABLE PRESSURE [BAR]: | 16 |
| MAX ALLOWABLE TEMPERATURE [°C]: | 140 |
| NORMALLY CLOSE/NORMALLY OPEN: | NORMALLY OPEN |
| KV: | 1.2 |
| MAX DELTAP. [BAR]: | 17 |
| SERVO CONTROL TYPE: | Ш 32 [1.4301] |
| SE/DE: | SIMPLE EFFECT |
| STEM SEAL: | PTFE+PTFE LOAD GRAPHITE PACKING GLAND |
| SEAT SEAL: | PTFE |
| EN BODY MATERIAL: | [1.4408] |
| STROKE/ROTATION [MM/°]: | 8 |
| LOWER SUPPLY PRESSURE [BAR]: | 6 |
| UPPER SUPPLY PRESSURE [BAR]: | 8 |
| WAYS VALVE: | 2 WAYS |
| AIR SUPPLY CONNECTION: | 1/8" GAS |
| 2014/68/UE DIRECTIVE CLASSIFICATION (PED): | ARTICLE 4, PARAGRAPH 3 |
